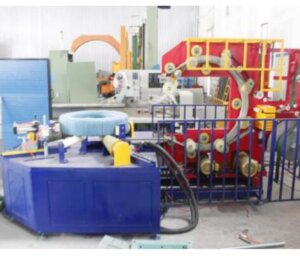

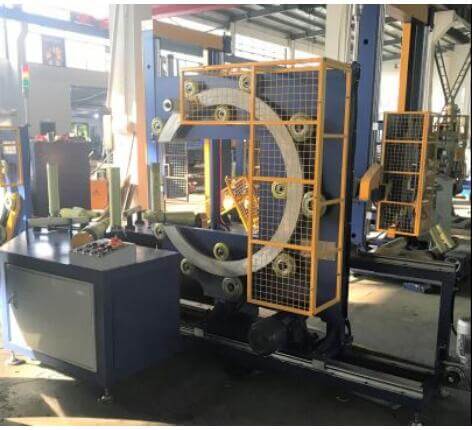

Horizontal Bearing Wrapper

horizontal bearing stretch wrapping machine

Bearing stretch wrapper machine application scenarios: This winding baler is suitable for through-the-core packaging of large bearings, steel coils, copper coils, steel wire coils, cable coils, water pipe coils, corrugated pipe coils, etc. The packaging has good protection and airtightness and a neat appearance. Can greatly improve work efficiency, thereby reducing labor costs.

Features of the machine:

  • The movable packing station is convenient for loading and unloading of the bearing;
  • Using PLC program to automatically control the operation of the machine;
  • The speed of the ring and friction wheel is adjusted by the frequency converter, which is simple and convenient;
  • The overlap rate of the packaging tape can be adjusted by changing the speed;
  • The tension of the packaging tape/stretch film is adjustable;
  • Different packaging materials can be selected;
  • The roller is wrapped by polyurethane to protect the surface of the object;
  • Side rollers are used for packaging operations to prevent engineering shaking;
  • The packaging material is automatically cut by the cutter device;
  • When a fault occurs, the indicator light automatically alarms;
  • The friction between the friction wheels is adjustable;
  • Soft start and soft stop ensure safe operation;
  • Automatic reset function of packaging position;
  • Simple machine structure design, extremely convenient operation and maintenance.

Machine’s parameter:

Bearing inner diameter200-350mm
Bearing outer diameter300-500mm
Bearing height50-200mm
Bearing weightmax 200kg
Ring speed100rpm
Packing speed30-60 sec/pcs
Power supply380V, 50Hz, 3Ph/customized
