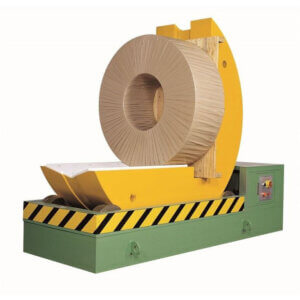

Steel coil upender and tilter

FZ series industrial coil tilter upender can be used for dislocation of different horizontal or vertical objects like mould,steel coil etc.

Steel coil upender and tilter
Steel coil tipper / coil upender


Technical Feactures

For turning over the coil for 90 degree. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.
1. Special double chain drive, oblique gear & worm speed reducer is adopted.
2. Four-roller device wrapped with polyamide adhesive.
3. Inverter control is adopted, fast, stable & safe.
4. Separate control panel allows remote operation.
5. Multiple position limit system ensures safe operation.
6. The machine can be stopped at random; object will stay in current position.

Technical parameters

Name FZ-03 FZ-06 FZ-08 FZ-10 FZ-15 FZ-15-180
Capacity 3T 6T 8T 10T 15T 15T
Speed 40sec 40sec 40sec 50sec 60sec 90sec
Driving mode Two chains Two chains Two chains Four Chains Four Chains Mechanical
Power 1.5KW 1.5KW 2.2kW 2.2kW 4.2KW 5.5KW
Control Mode Panel/Remote Panel/Remote Panel/Remote Panel/Remote Panel/Remote Panel/Remote

Transportation

for small quantity we use wooden case to pack the upender tilter to avoid damage during the long time and long distance transportation,
for large quantity we use full container loading ,which is more safe and stable.
